ADI-25xxx










    ADI-25350 ADI-25500 ADI-25700 ADI-25900
Output Power (W) 25 25 25 25
Output Current (mA) 350 500 700 900
Output Voltage Range (V) 35-70 25-50 18-36 14-28



  • High power factor, low harmonic
  • Power Factor 0.98, Efficiency min.0.92
  • Protection with insulated transformer
  • Over temperature, overload and short-circuit protection
  • Compact housing for installation in tight spaces
  • 50,000 hours lifetime, 5 years warranty
  • Suitable for class I and class II luminaires
  • Complies with EN 61347-2-1, EN 61347-2-13, EAC and CE norms

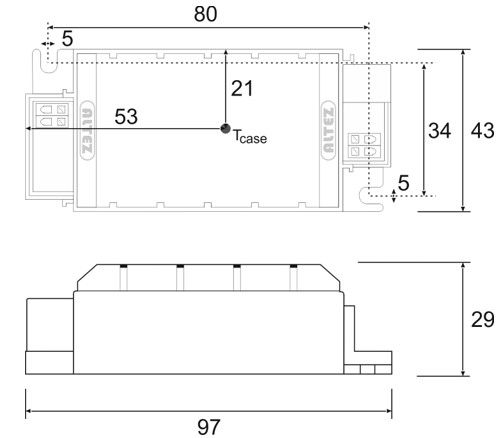

KodPowerDimensionCurrentNorm Voltage
ADI-2535035-70V133/96x43x29mm350mA25W
ADI-2550025-50V133/96x43x29mm500mA25W
ADI-2570018-36V133/96x43x29mm700mA25W
ADI-2590014-28V133/96x43x29mm900mA25W
