ADI-50xxx

    ADI-50500 ADI-50700 ADI-50900 ADI-501A5
Output Power (W) 50
Output Current (mA) 500 700 900 1050
Output Voltage Range (V) 50 - 100 35 - 71 27 - 55 23 - 47
  • High power factor, low harmonic
  • Power Factor 0.98, Efficiency min.0.92
  • Protection with insulated transformer
  • Over temperature, overload and short-circuit protection
  • Compact housing for installation in tight spaces
  • 50,000 hours lifetime, 5 years warranty
  • Suitable for class I and class II luminaires
  • Complies with EN 61347-2-1, EN 61347-2-13, EAC and CE norms

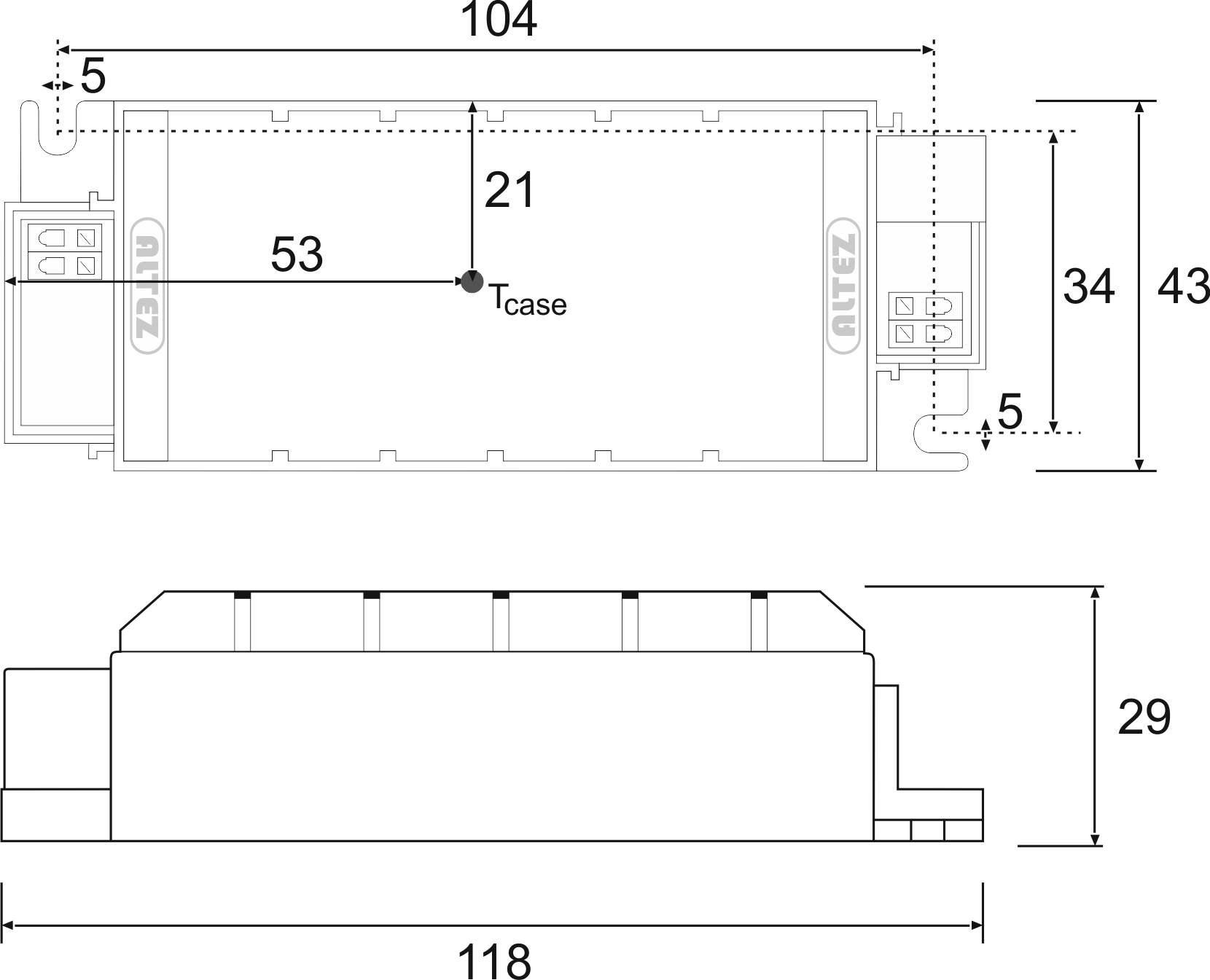

KodPowerCurrentDimensionsNorm Voltage
ADI-5050050W500mA118x43x29mm50-100V
ADI-5070050W700mA118x43x29mm35-70V
ADI-5090050W900mA118x43x29mm27-55V
ADI-501A550W1050mA118x43x29mm23-47V
