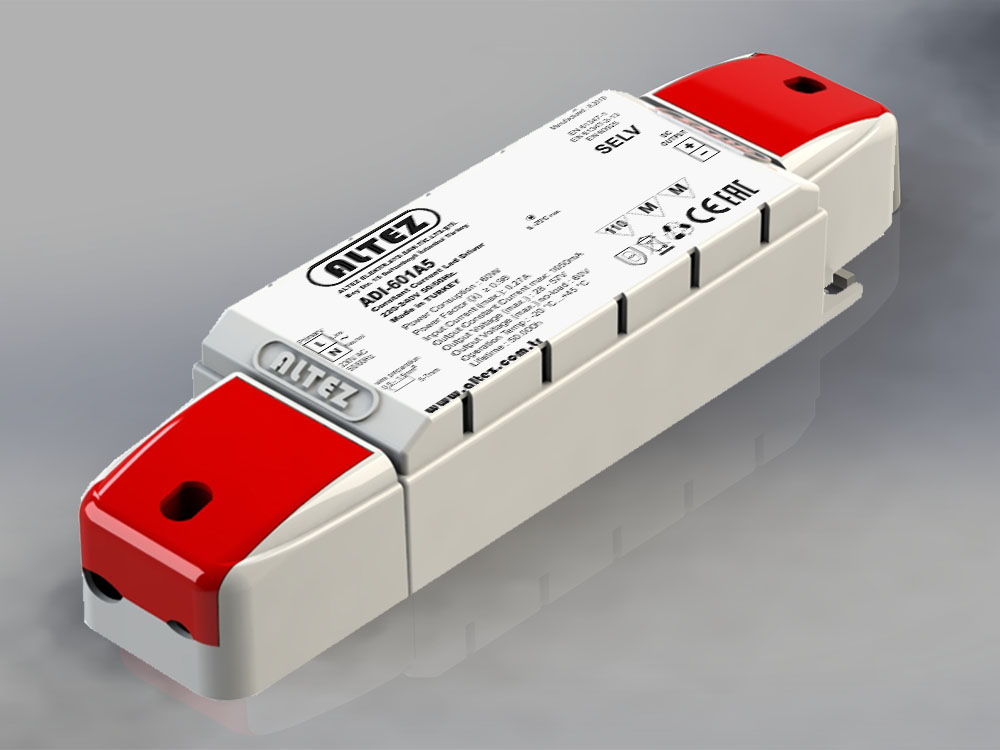

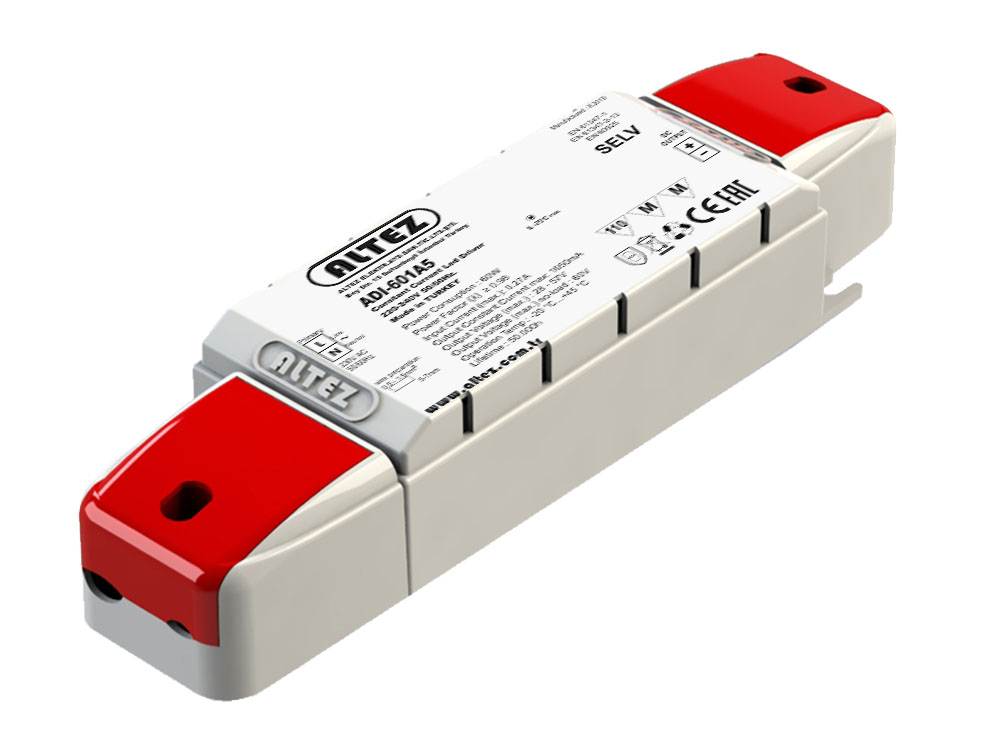

ADI-60xxx

    ADI-60500 ADI-60700 ADI-60900 ADI-601A5
Output Power (W) 60
Output Current (mA) 500 700 900 1050
Output Voltage Range (V) 60 - 120 42 - 85 33 - 66 28 - 57
  • High power factor, low harmonic
  • Power Factor 0.98, Efficiency min.0.92
  • Protection with insulated transformer
  • Over temperature, overload and short-circuit protection
  • Compact housing for installation in tight spaces
  • 50,000 hours lifetime, 5 years warranty
  • Suitable for class I and class II luminaires
  • Complies with EN 61347-2-1, EN 61347-2-13, EAC and CE norms

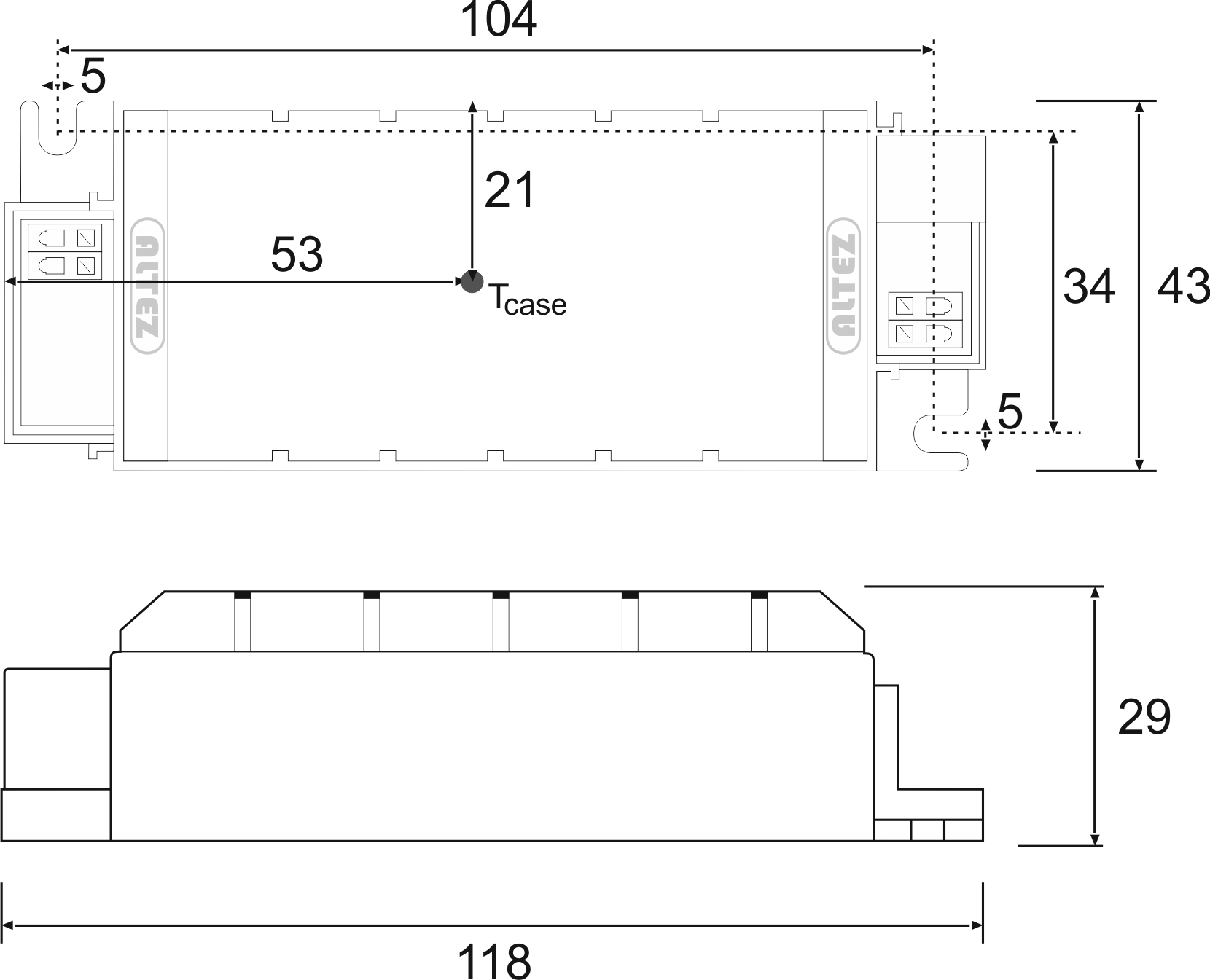

KodPowerCurrentDimensionsNorm Voltage
ADI-6050060W500mA118x43x29mm60-120V
ADI-6070060W700mA118x43x29mm42-85V
ADI-6090060W900mA118x43x29mm33-66V
ADI-601A560W1050mA118x43x29mm28-57V
